Our latest release includes some highly requested improvements to Onshape Drawings. Let's take a look.
CAD IMPROVEMENTS

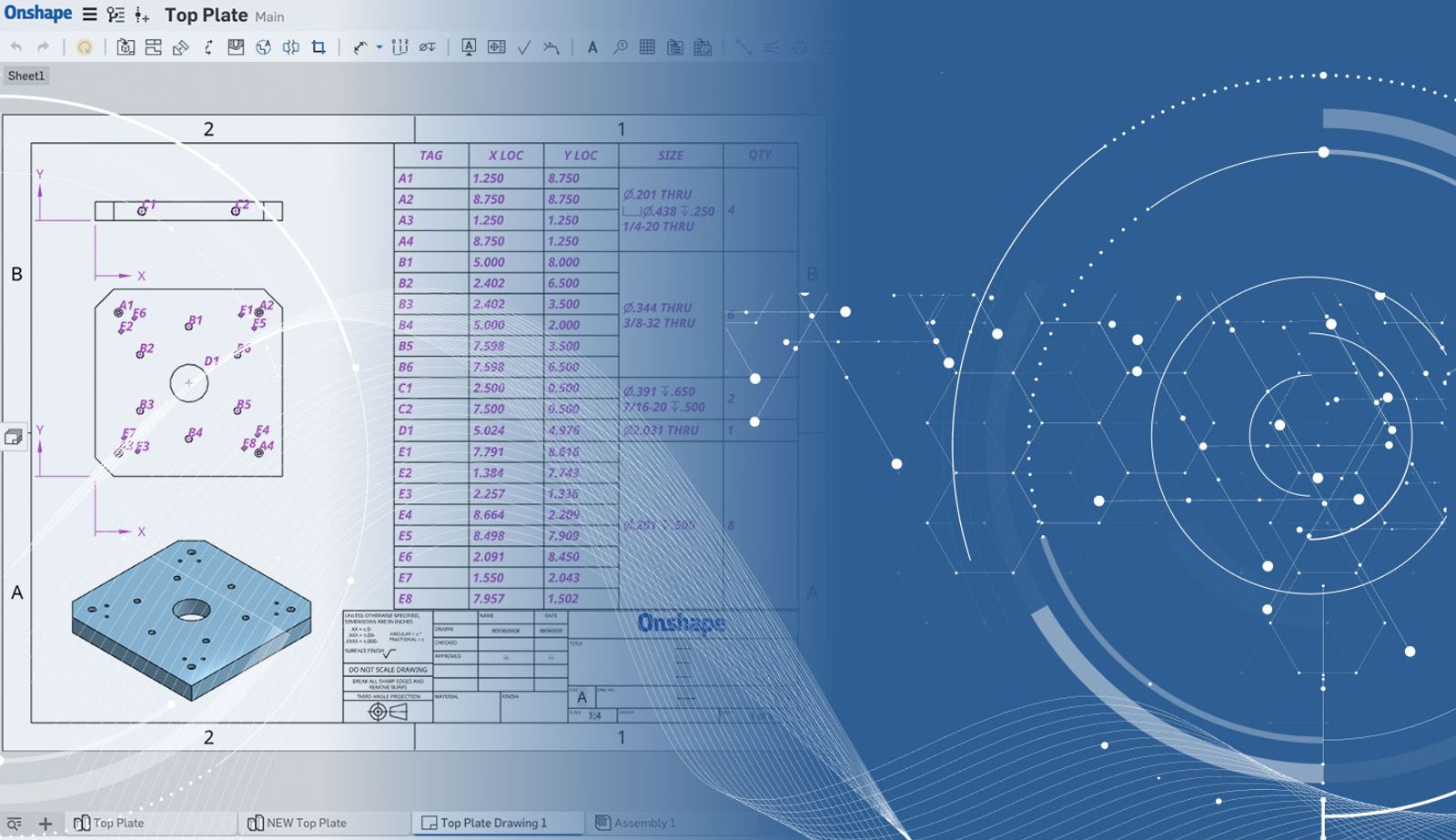

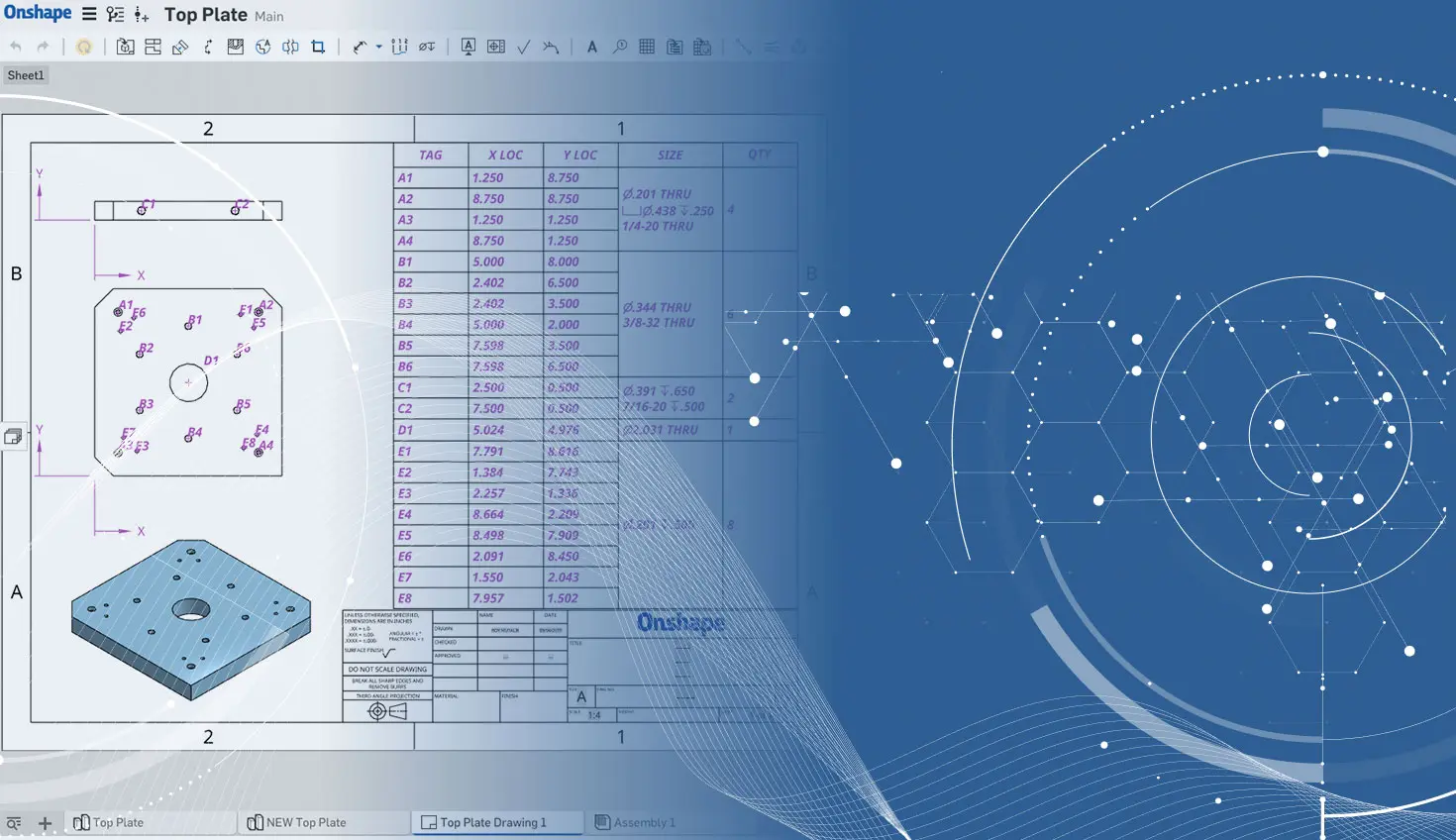

HOLE TABLES
You can now create Hole Tables to show on your drawings.
REPLACE MODEL & DRAWING REFERENCES
With this release, you can now replace a model reference on a drawing even after views have been created.
There are many use cases for this functionality. Some include:
- Replacing views of a Part Studio (which you had created accidentally) with the correct Part reference
- Changing Configuration of a Part shown on a drawing
- Replacing a Part with an Assembly
- Duplicating a drawing, and changing the reference (for a similar part)
- Switching all view references between a Workspace and a Revision/Version.

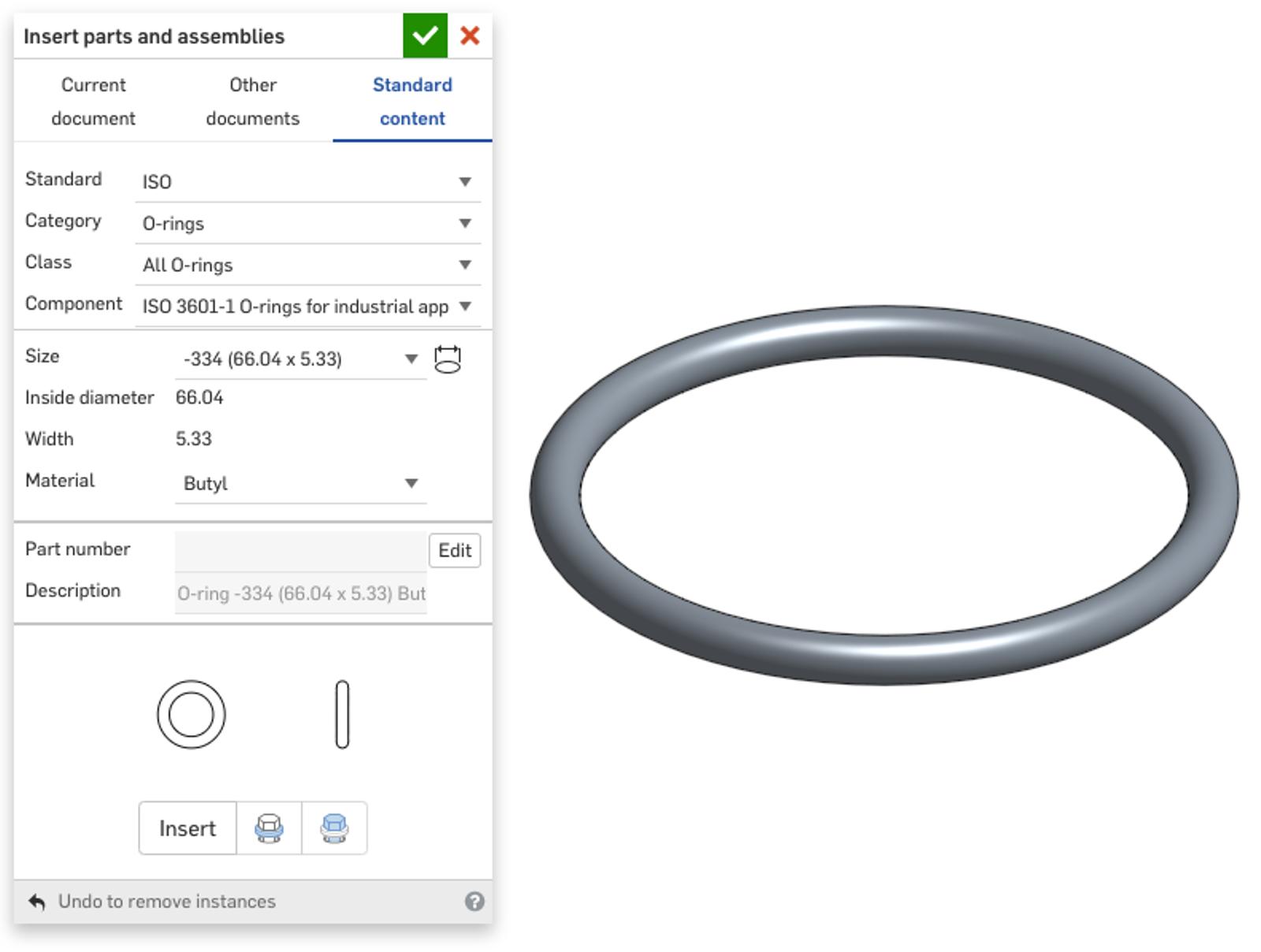

O-RINGS IN STANDARD CONTENT
ISO 3601-1:2012 and SAE AS568D O-rings have now been added to the Standard Content Library.

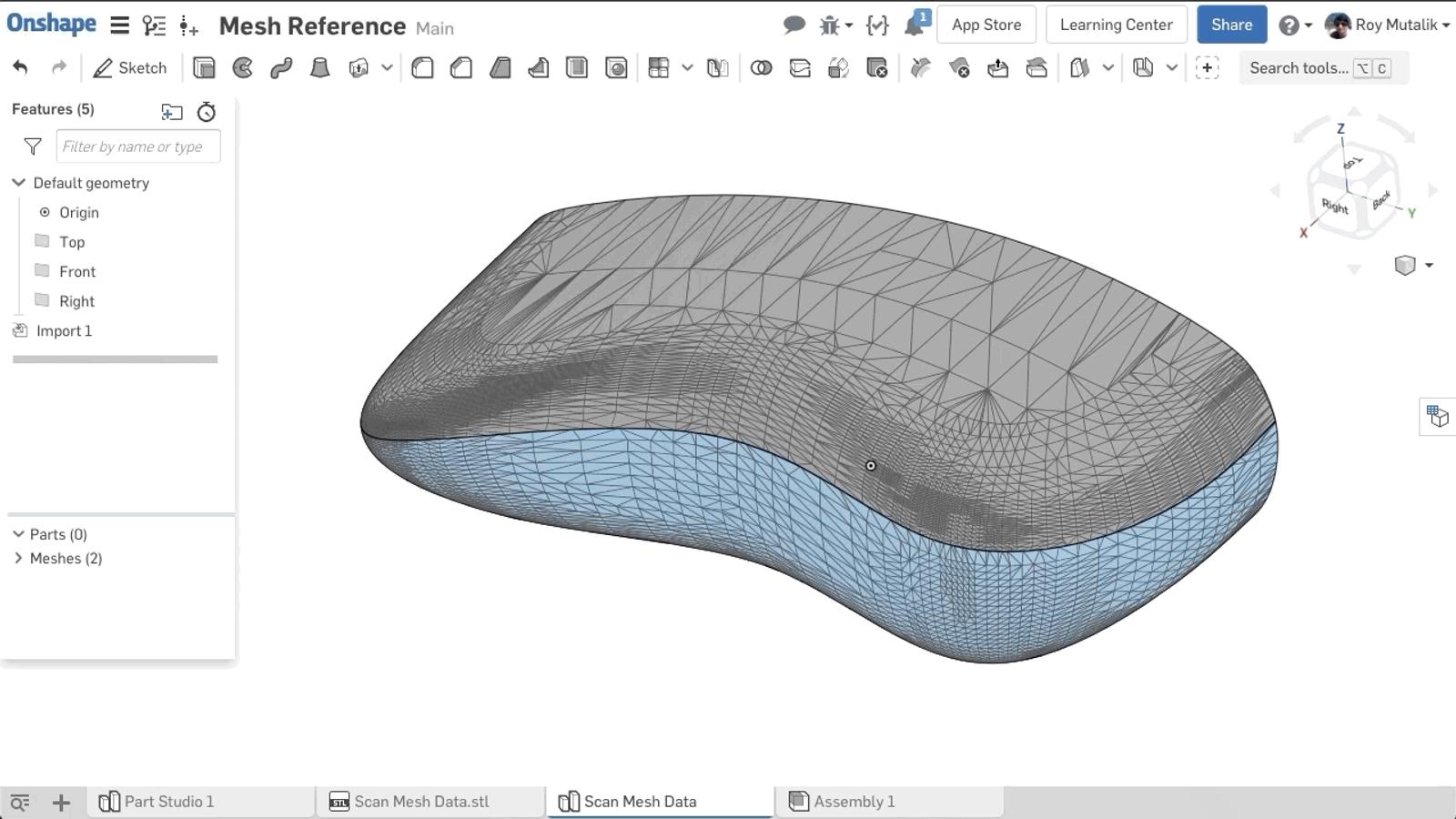

CHANGE UNITS OF MESH DATA
You can now dynamically change the units of imported mesh data. The changes automatically update, resizing the mesh in the Part Studio where it was imported.

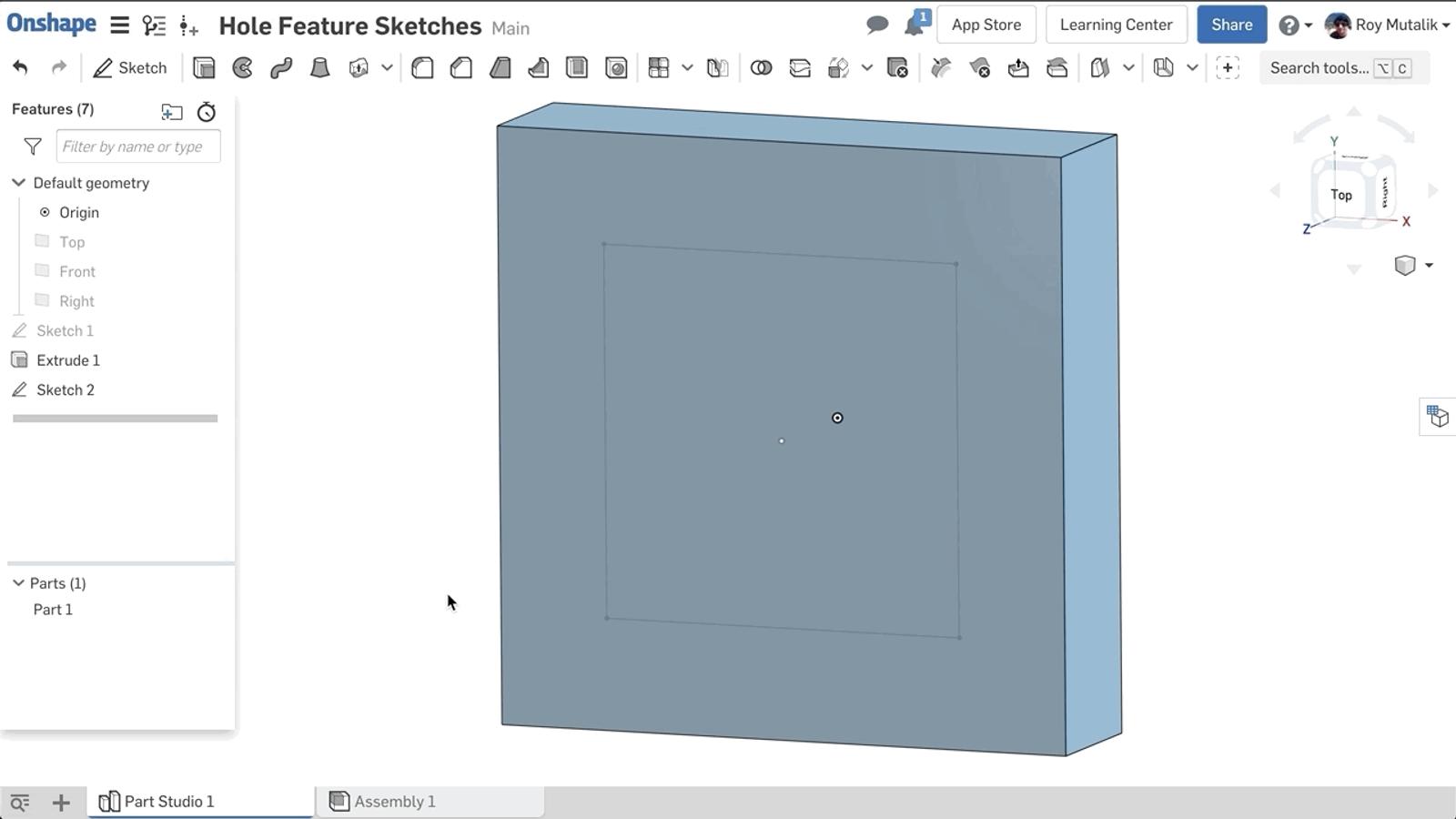

SKETCH SELECTION AS REFERENCE FOR HOLE FEATURE
A few releases back, we introduced the ability to select an entire sketch as a reference for a Hole feature. The Hole feature parametrically updates if vertices are added or removed from that sketch.
After receiving feedback from many users, especially on the Onshape Forums (thank you!), we have made some additional improvements. Most notably, certain points from the sketch will no longer be automatically included in the selection. These points include:
- The center point of a center-point rectangle
- The three points used to define a three-point circle
- The edge point created by the inscribed polygon
- The center point of a circular pattern
Note that any of these points can still be used as a reference location for a hole if selected manually in the Hole feature.
We would like to take a moment to thank our active and vocal users for providing us with valuable feedback. We'll promise to always listen, and continue to make Onshape better together!
STANDARD CONTENT APPENDIX
A Standard Content Appendix has been created in the Help documentation. Help is searchable, so you will be able to easily find the appropriate hardware without having to dig through the Standard Content Library from the "Insert" feature in-app.
DRAWING TABLE PERFORMANCE
You should expect to see improved performance and responsiveness when dragging, snapping, and generally navigating tables on Onshape Drawings (General Tables and Bill of Materials).
PROFESSIONAL IMPROVEMENTS
CLONE A RELEASE CANDIDATE
You can now create a new Release Candidate by directly copying a previously created one. All elements (tabs), as well as the comment history, is copied to the newly created Release Candidate.

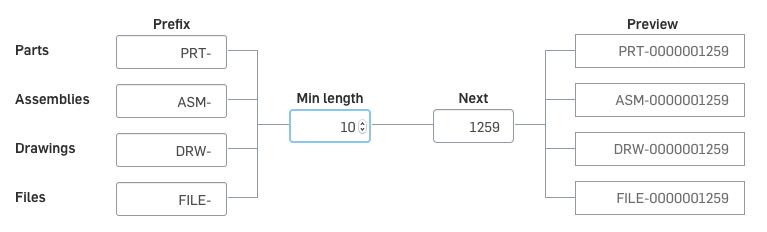

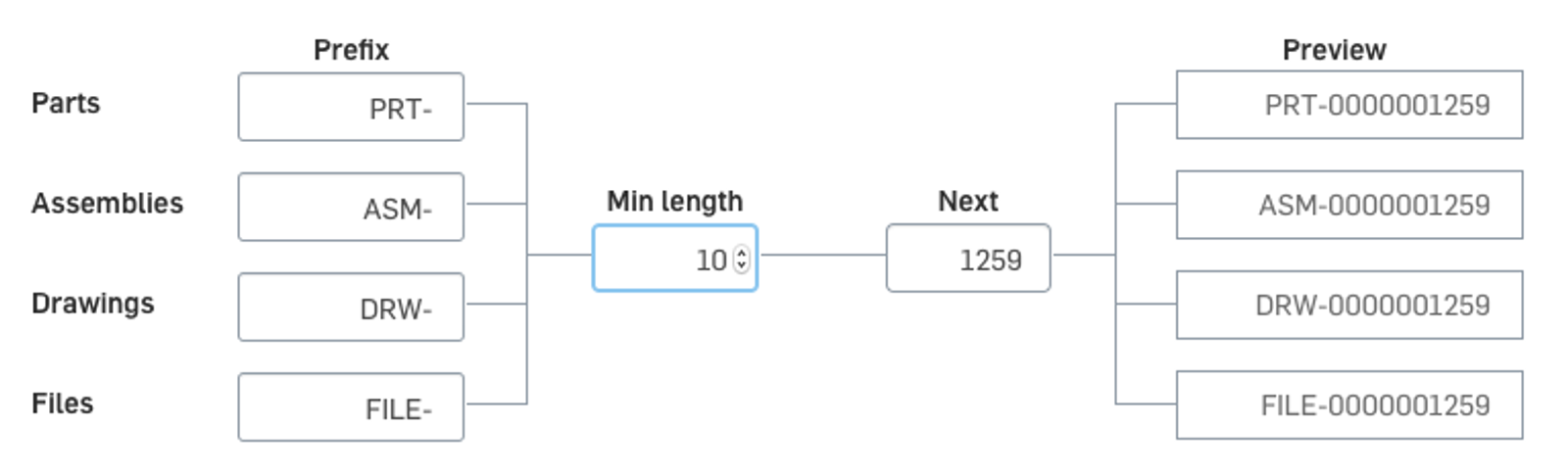

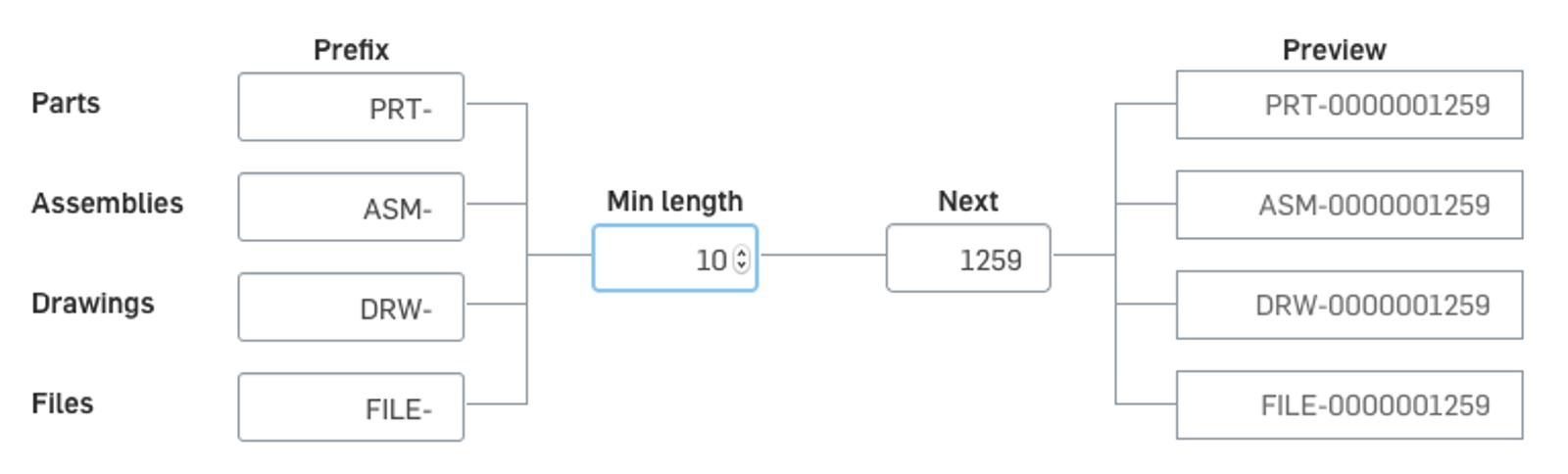

TEN-DIGIT PART NUMBERS
You may now enforce a minimum Part Number length of up to 10 digits.
ENTERPRISE IMPROVEMENTS

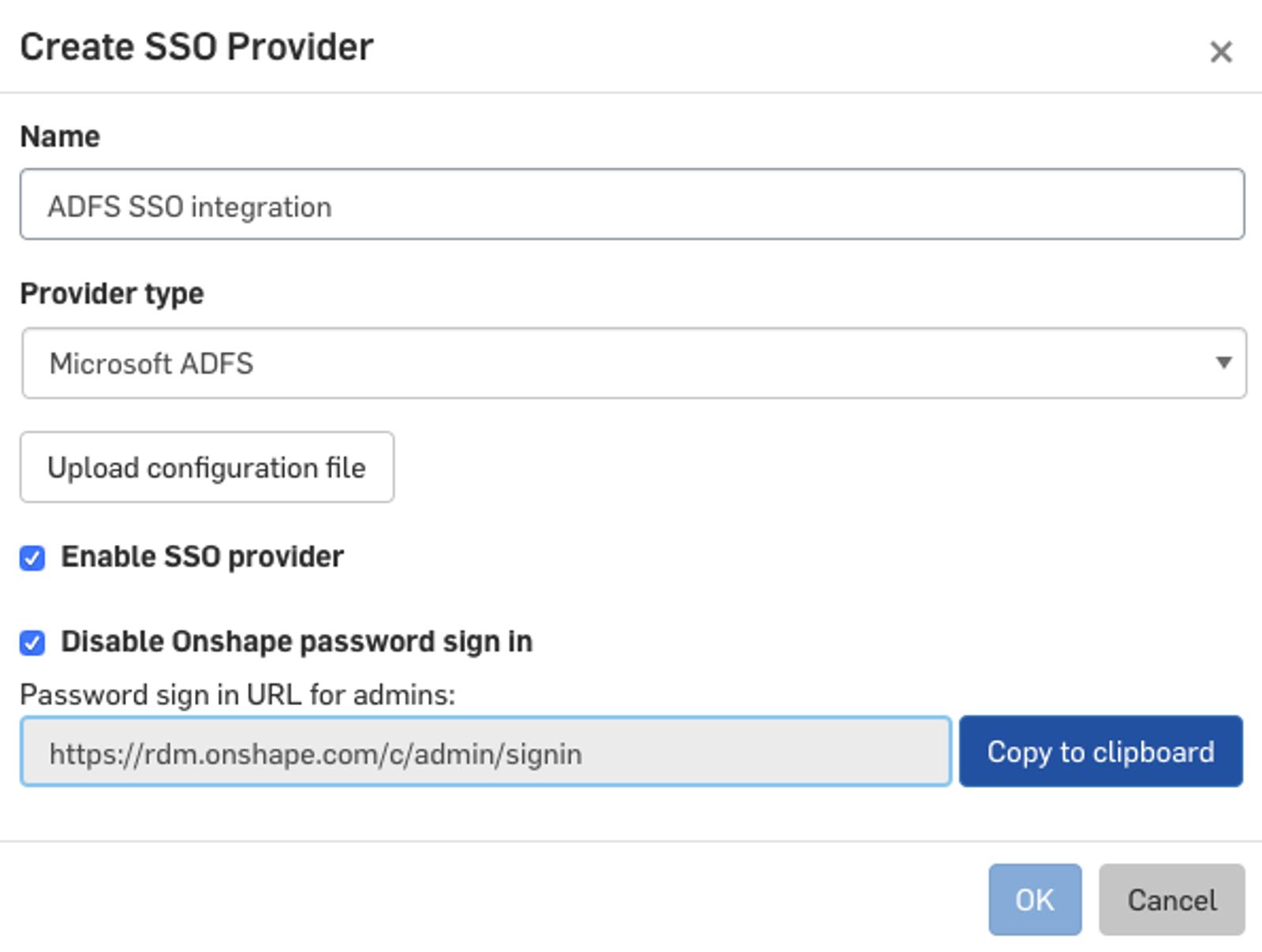

SSO USING AZURE AD AND ADFS
Onshape Enterprise's Single-Sign-On (SSO) now supports the use of Microsoft Azure Active Directory (AAD) and Active Directory Federation Services (ADFS).
FEATURESCRIPT IMPROVEMENTS

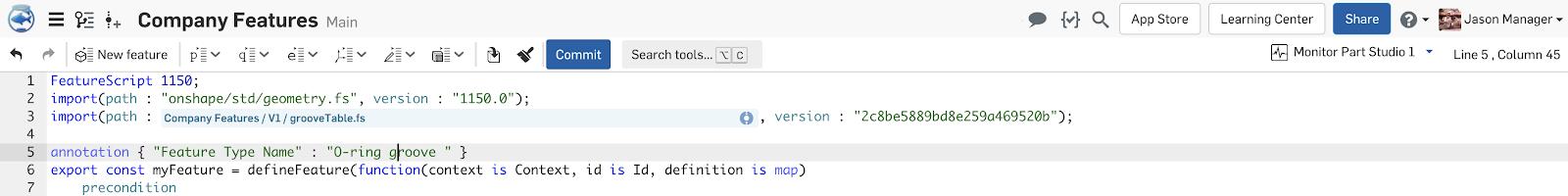

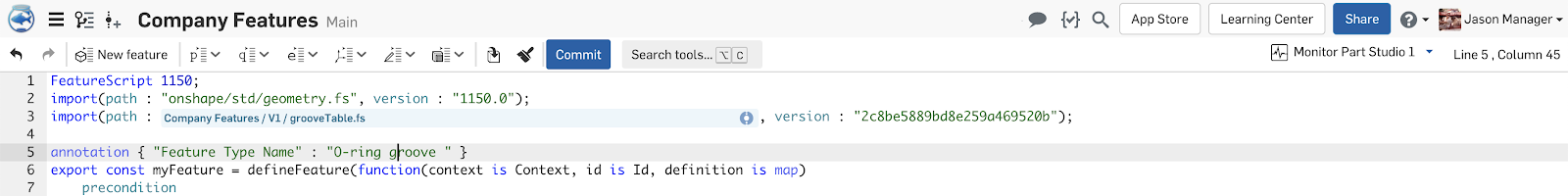

EXTERNAL REFERENCE UPDATE DIALOG
Feature Studios will now show an external reference update icon (similar to those shown in the feature tree) and include a similar update dialog for managing versions of external references.
LEARNING CENTER IMPROVEMENTS
TECH BRIEFING - MANAGING AND USING ONSHAPE ITEMS
A new Tech Briefing has been published on how to manage items as a company admin, and add items to your BOMs as a company member.
Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.
Remember: The updates listed here are now live for all users when creating new Documents and over the next few days, these features will also be available in Documents created before the date of this update.
