We've had some exciting news on the business side recently, but nothing slows down our release cadence. So here we are with another Onshape update packed with features requested by you! Let's dive in.
CAD IMPROVEMENTS
COMPOSITE PARTS

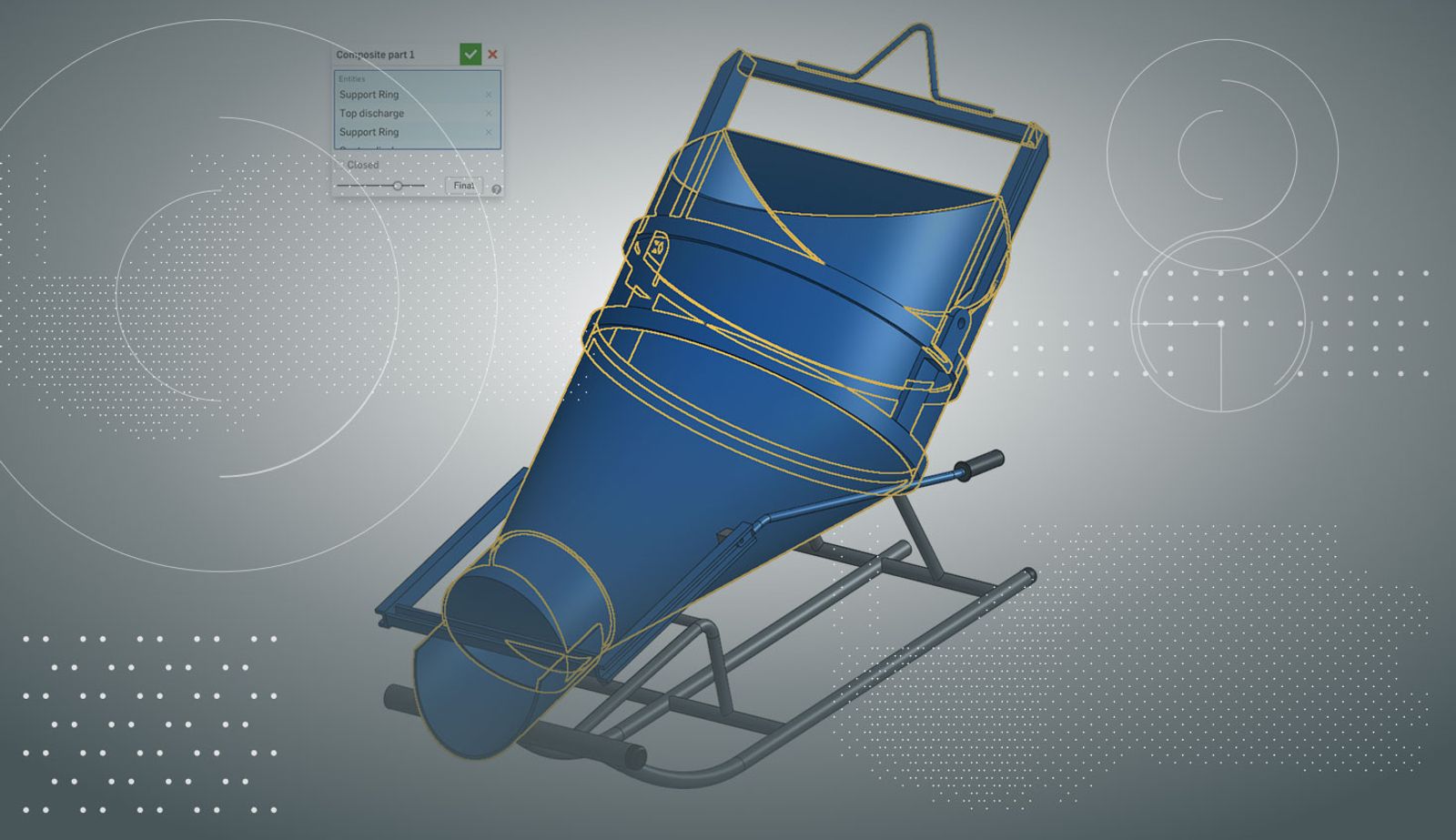

You can now create Composite parts consisting of parts, surfaces, curves, and points. Composite parts are treated as one part in the Bill of Materials and when using Release Management.
INSERT DIALOG IMPROVEMENTS
You will find a new "Advanced Search" button when inserting in Onshape. This makes it possible to filter and search by custom properties from within the Insert dialog.
INTERFERENCE DETECTION IMPROVEMENTS
Improvements have been made to Interference Detection that include an automatic zoom to fit when selecting an interference from the list, as well as a bounding box highlighting the interference in the graphics.
SECTION VIEW IMPROVEMENTS
You can now break a section view in Onshape Drawings.
EDIT VIEW ORIENTATION IN ONSHAPE DRAWINGS
You can now edit the orientation of a drawing view after it has been inserted.
CUSTOMIZE USER-DEFINED FEATURES IN TOOLBAR

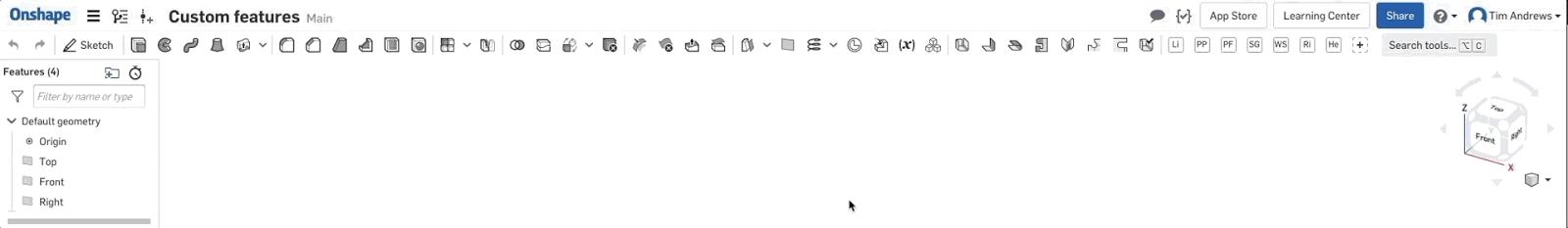

You can now re-arrange custom features in Part Studio toolbars.
NEW FEATURE/INSTANCE LIST STYLING

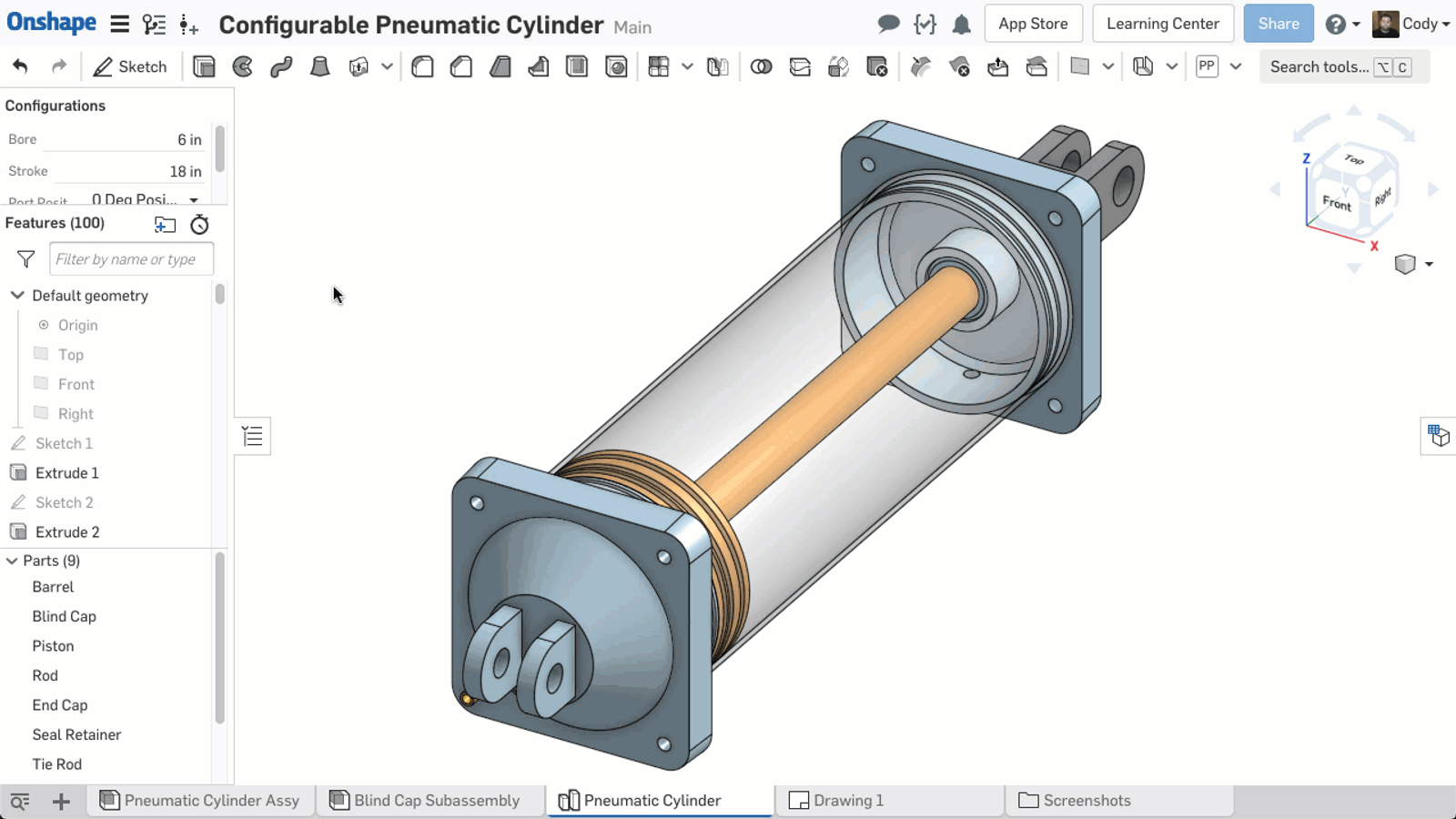

The feature list has been restyled to allow for resizing of contexts, configurations, features, and parts sections. The feature list is now docked and is fully collapsible by clicking the feature list icon.
IMPORT IMPROVEMENTS

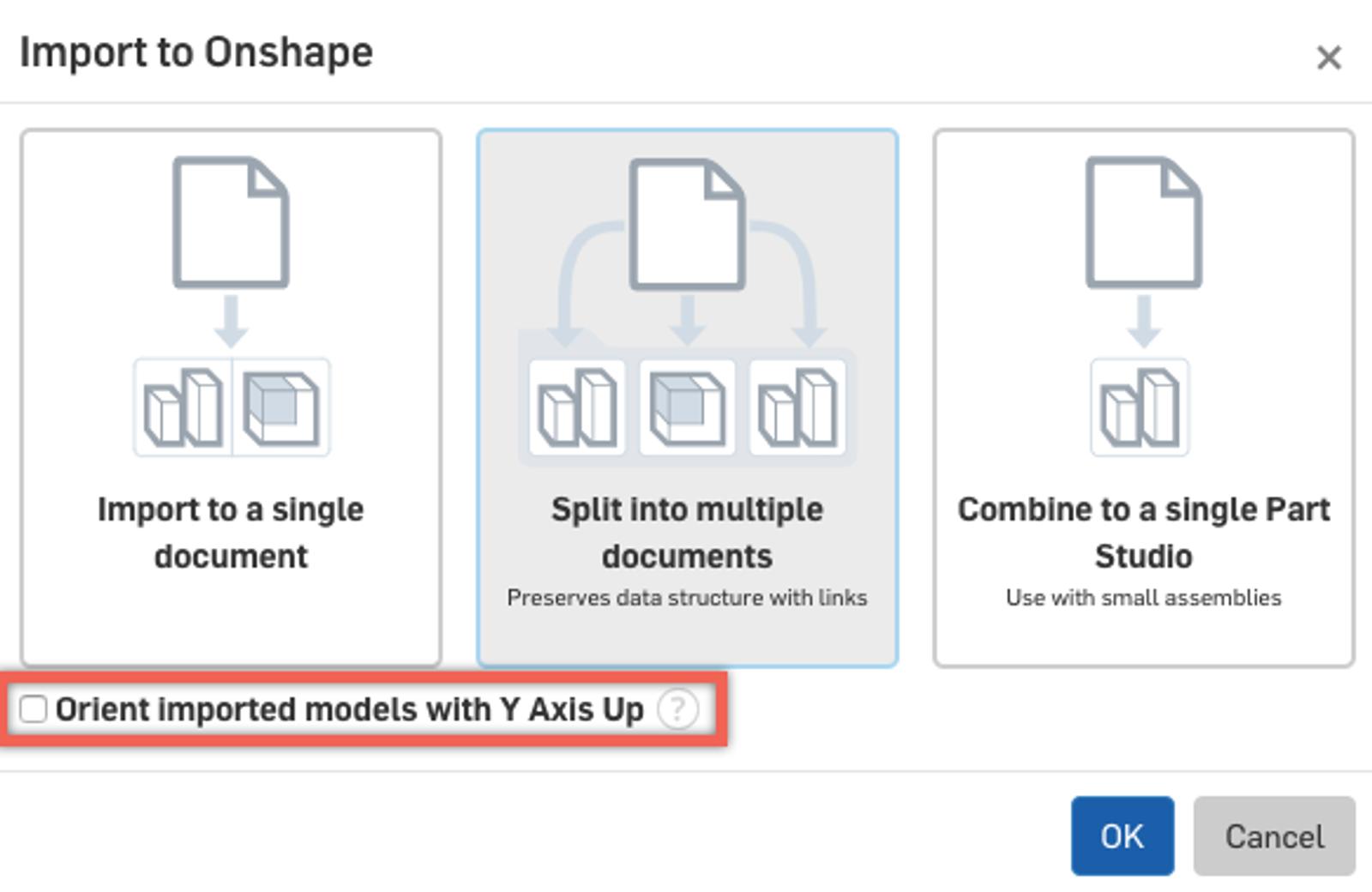

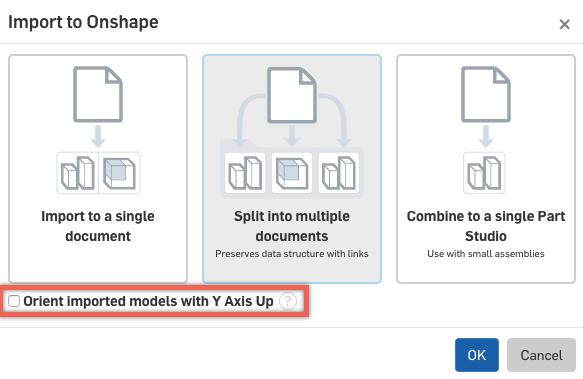

You can now choose the option to "Orient imported models with the Y Axis Up" when importing into multiple Onshape Documents. In the past, this option was limited to importing to a single Document.
Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.
Do you have a great idea for a new feature or improvement in Onshape? Please post your ideas in the Onshape Forums or vote on existing feature requests to help us prioritize development.
