We are ready with our third release of the year! This update includes improvements to core modeling, drawings, Render Studio, and more. Let's dive in.
Remember: The updates listed here are now live for all users when creating new Documents. Over the next few days, these features will also be available in Documents created before this update.
CAD Improvements

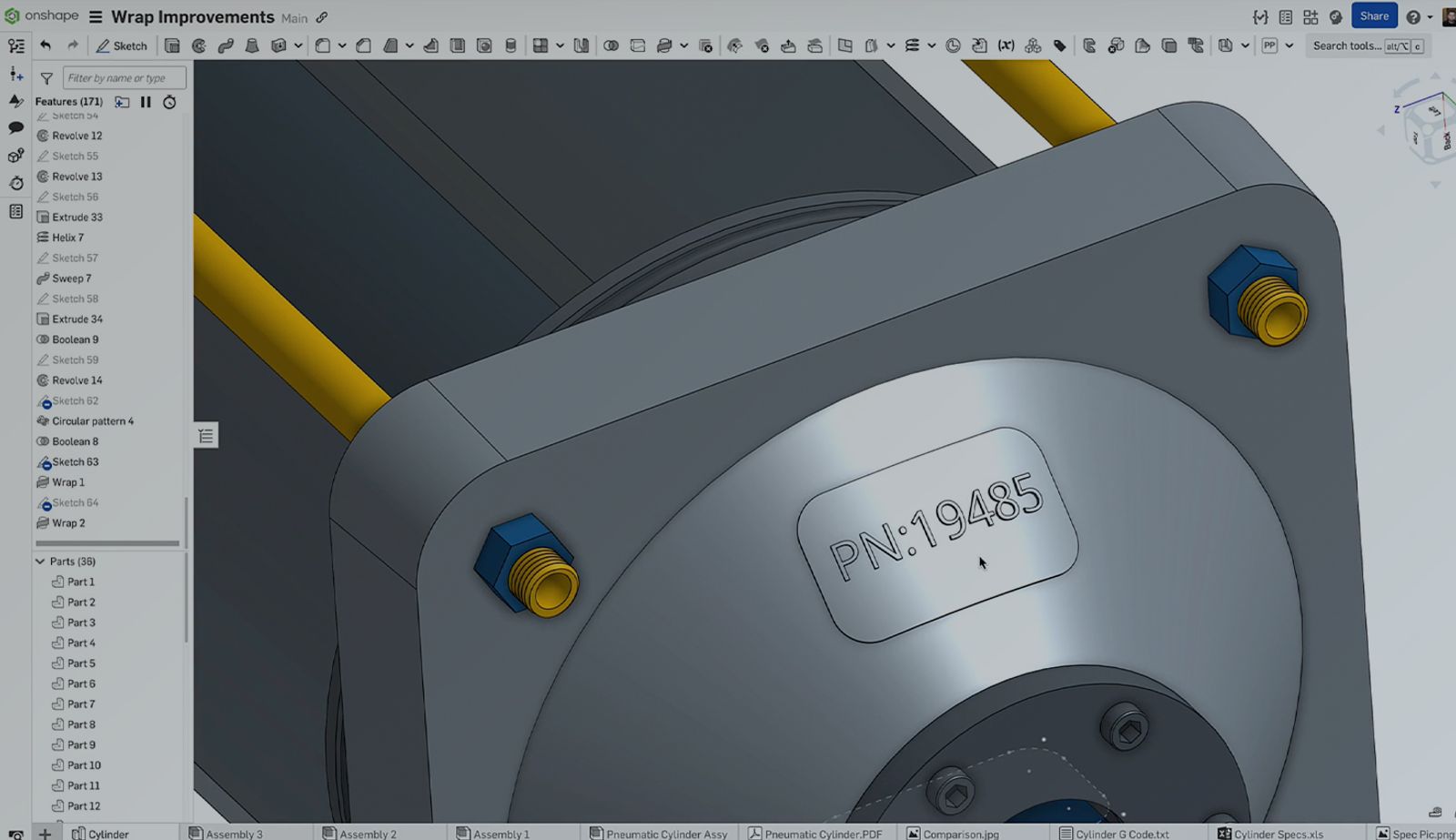

Wrap on Conical Face
You can now apply a Wrap feature to a conical face. In the past, this was limited to cylindrical faces.
Repair Manager Improvements
In addition to accessing the Repair manager from the Versions and history panel, you can now fix broken references in two alternate ways. Right-click on the failed feature in the features list or from the failed reference in the feature dialog. In both cases select Edit healthy moment to open the Repair panel with the feature’s latest healthy moment.
Copy/Paste Configuration Inputs
You can now copy and paste configuration inputs in Onshape. This makes building configurations with similar inputs much easier.
Hide Sheet Metal Form Features
You can now hide the Form feature sketch that is visible in the Sheet metal flat view.
Drawings
Break Dimension and Show Dimension Line Drawing Property
You will find two new drawing properties for Break dimension and Show dimensions lines in the Drawing properties panel.
Render Studio
OpenVDB Volume Appearance
Render Studio now supports OpenVDB volumes with a new OpenVDB volume appearance. Use this appearance to create volumetric effects like smoke, fog, and water, without needing to model complex geometry.
FeatureScript
Improved Lambda Functions
FeatureScript now has improved lambda functions. This syntax change was highly requested and makes code more succinct and easier to read.
Enterprise
Global Import Permission

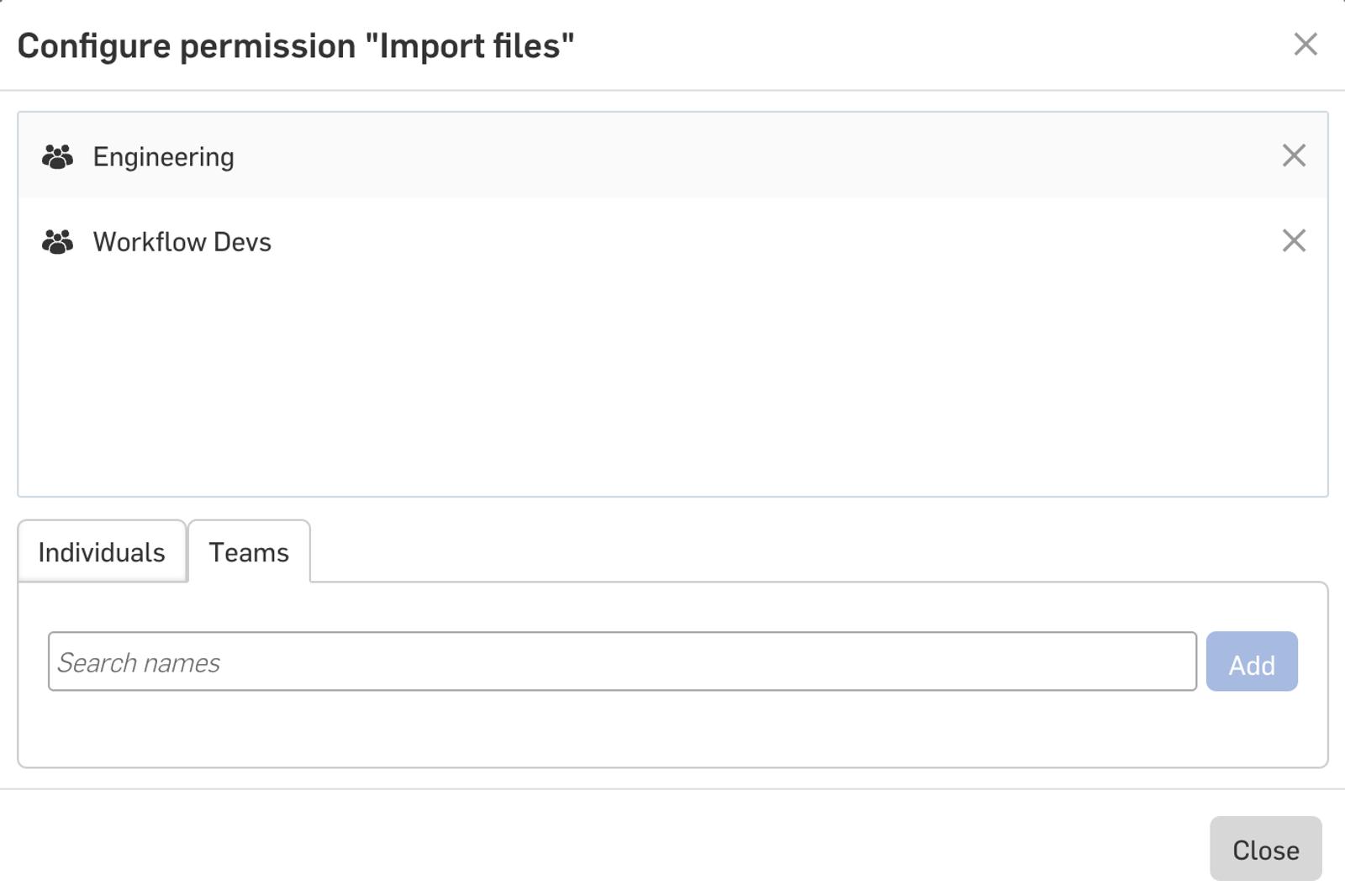

You will find a new "Import files" Global permission that allows you to define who in your organization can import files. By default, this is set to all users in the enterprise.
Please take a moment to try out these new features and improvements and leave your comments in the Onshape Forums. For a detailed list of all the changes in this update, please see the changelog.
