Tech Tip: How to Create External Threads in Onshape

Certain features do not necessarily need to be modeled with 100% accuracy when building 3D parts. External threads are one such example. Building these threads in 3D is unnecessary in most cases and can impact performance, particularly in large assemblies. Adding thread callouts to the drawing is usually sufficient to assist the machinist in manufacturing.

The External Thread Feature

While this water bottle's thread is likely to be molded as part of the plastic injection molding process, it still demonstrates the External thread feature.

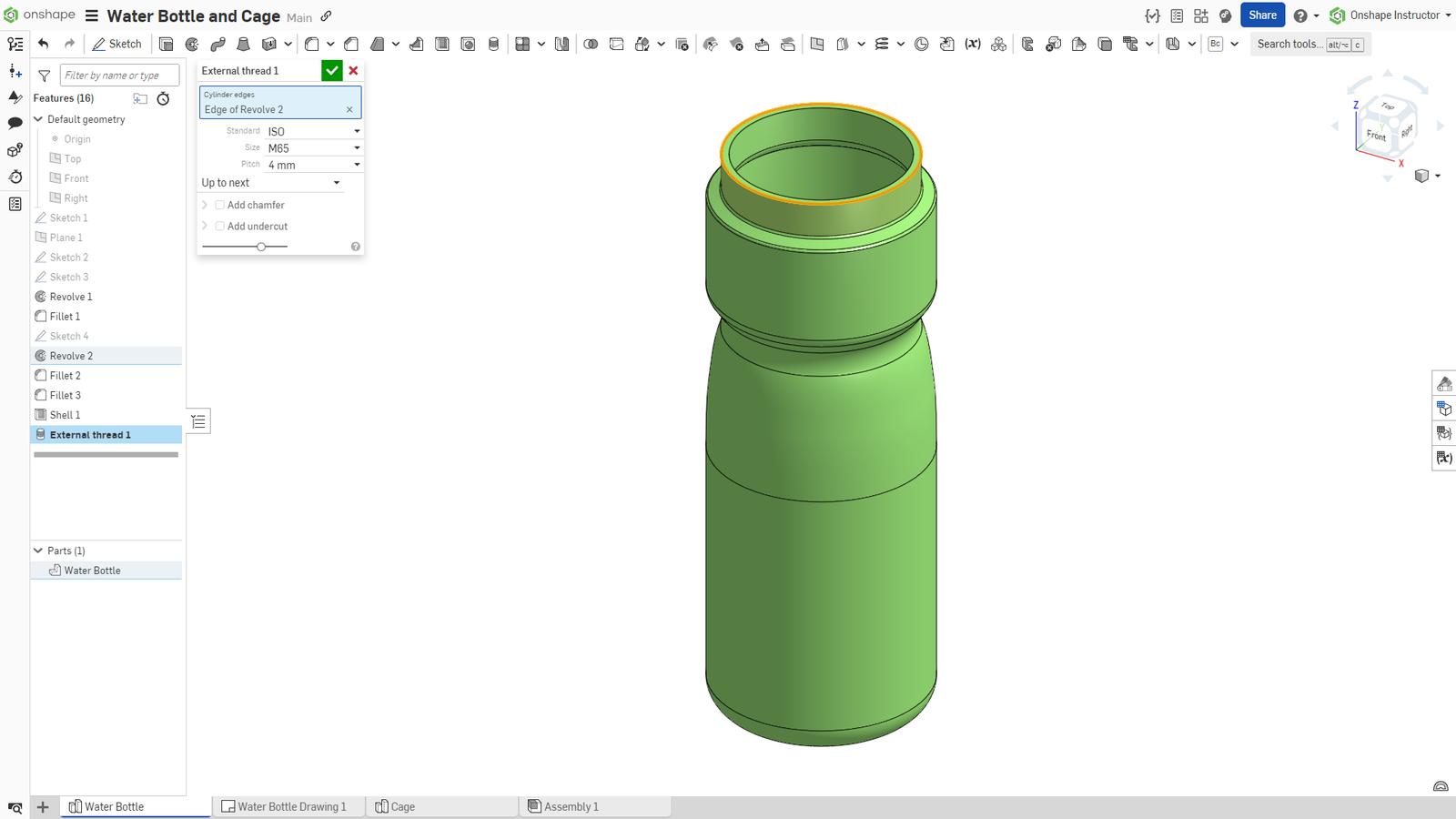

Start a new External thread feature from the Features toolbar. Select the edge or edges of a shaft or other convex cylindrical face. To add multiple external threads, select multiple edges of the same size.

Then, define the Standard, Size, and Thread pitch.

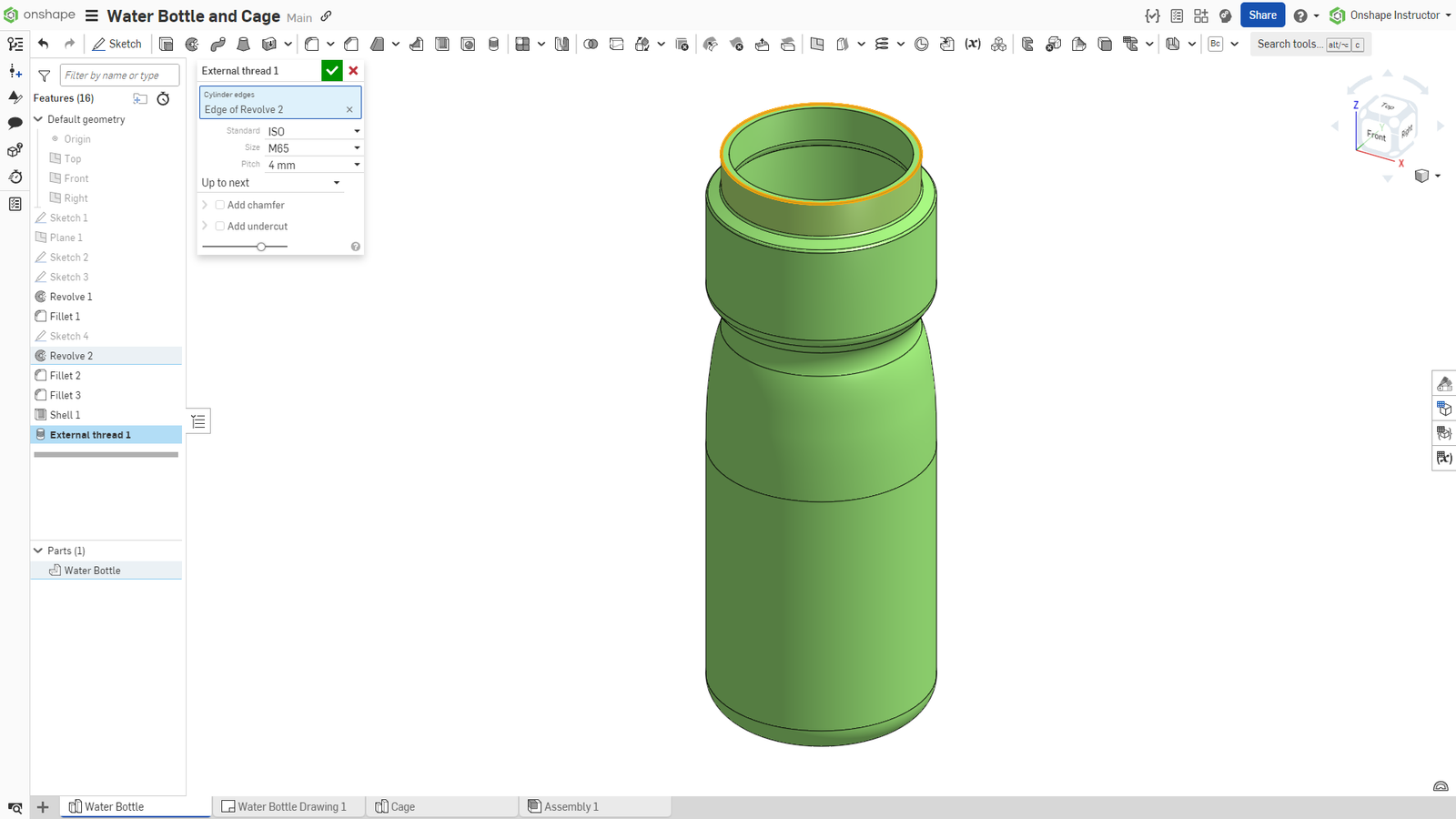

Set the End type to Blind or Up to next. Define the total thread depth for a Blind End type. Up to next continues the thread up to the termination of the cylindrical face.

External Thread Options

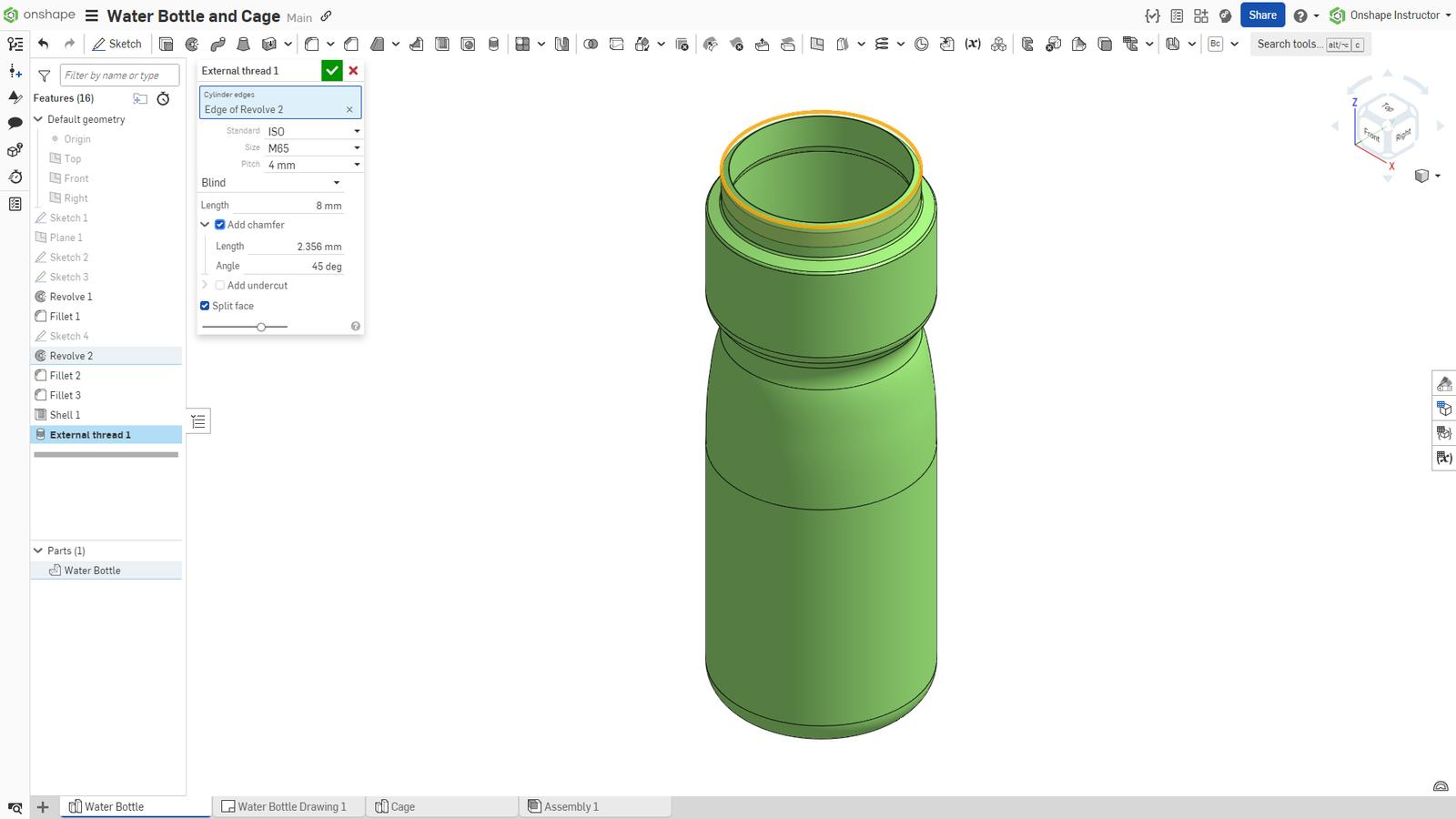

Optionally, add a chamfer at the top of the thread. Define the chamfer’s Length and Angle.

Optionally, add an undercut at the bottom. The Diameter and Length default to values based on the thread and pitch, but can be modified.

Enable the Split face option to help visualize the total depth of the thread.

Threads on Drawings

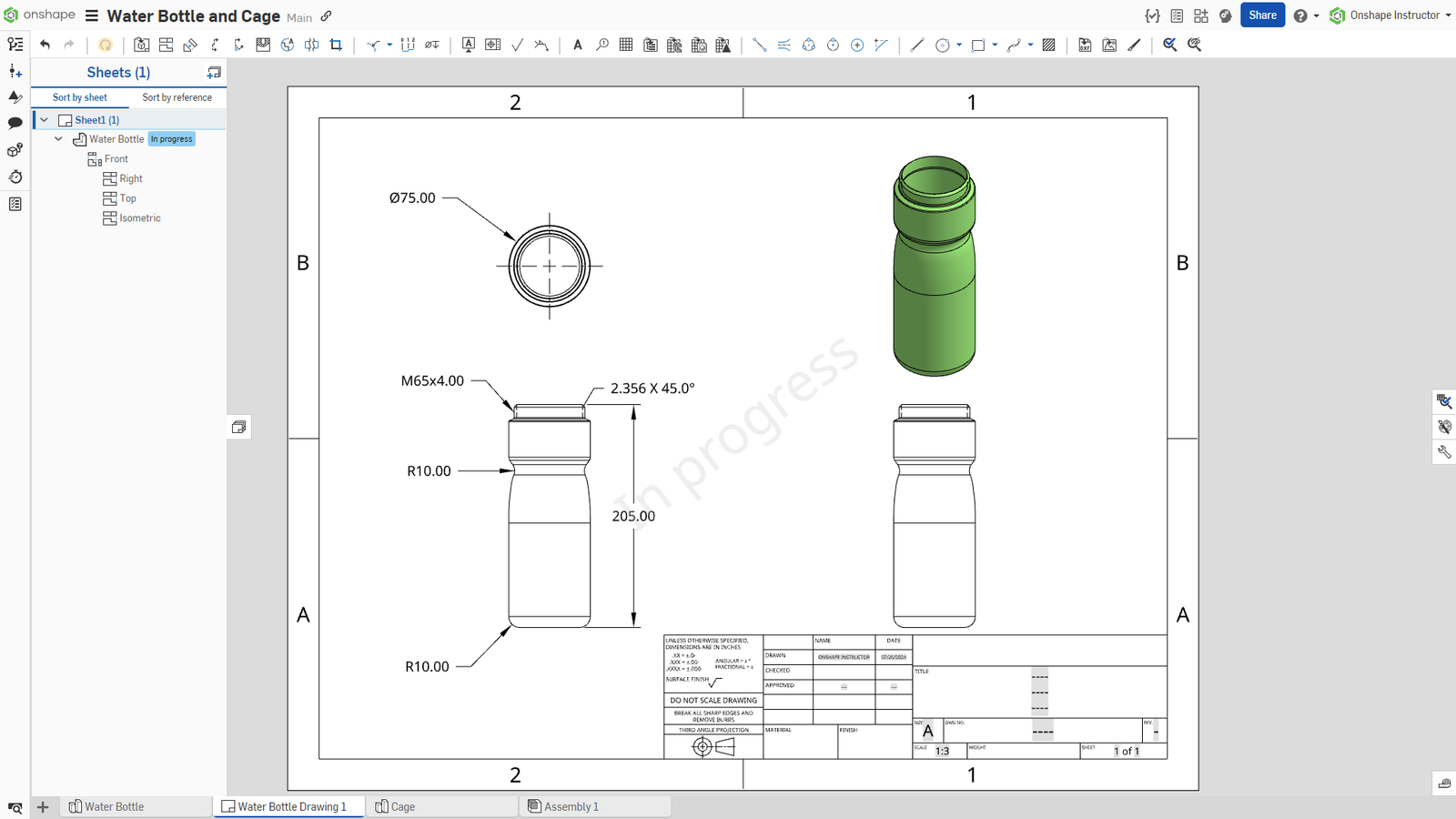

In the drawing, you can see the thread with phantom lines inside the shaft. Start a new  Hole/Thread callout, and click on one of the external edges of the shaft or cylindrical face. The split line indicates the termination of the thread whether or not you added it during the thread's creation. However, if you want to add a dimension for the thread depth, ensure the Split face option is enabled.
